Ithaca S/S S12
Dec 27th, 2006 at 2:33am
Print Post
I wandered in here looking for Ithaca information. Found a few posts about serial numbers and pre-war Ithacas. I had the same trouble as other members - couldn't find out an exact address to e-mail Ithaca for information on a side by side boxlock I just purchased.

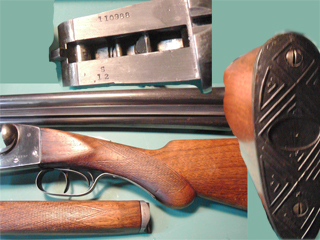

It's a clean sport grade marked "smokeless powder" on the barrels. Double trigger. Only marks at the action are the serial no. 110988 and "S12".
Looks like a good clean hunter. I wanted a more comfortable field gun for pheasant. I gave my Win' Model 12 to my son last pheasant season to make his hunt better. Tried to use my Rem'870 but it cocked my wrist at an uncomfortable angle when carried for long distances. This Ithaca has great classic lines and I won't feel too bad hunting it in heavy brush... unless it's worth more than I think. My guess is the $380 I paid for it might be a little on the high side. But it was very clean, good checkering and good color and wood. Very basic engraving, nothing fancy.
I'm a fairly good machinist/gunsmith and usually take apart an old gun as soon as I get it home. This one felt just a little stiff in the firing pins but didn't want to take it apart until I found some literature on boxlocks. (Did I guess right? From what I've found I think this is a boxlock) This is my first s-s and I'd like to take care of it.
Any assistance with dating this and sources for maintenace would be appeciated.


Back to top

IP Logged

e15cap
Ex Member


Re: Ithaca S/S S12
Reply #1 - Dec 27th, 2006 at 8:24am
Print Post
Try doublegunshop.com. Look at the bottom for other usefull info and then dates of production. Sounds like a clean and lube may be in order.
                                                   Roger

Back to top

IP Logged

Green_Frog
Frequent Elocutionist
*****
Offline


"It ain't easy being green"
ASSRA Life #281

Posts: 4118
Location: Lynchburg, VA
Joined: Apr 18th, 2004
Re: Ithaca S/S S12
Reply #2 - Dec 27th, 2006 at 10:29am
Print Post
Those old Ithaca box locks are just about bomb proof.  About the only problem I have ever seen them have for wear was the cocking bar wearing off too short to actuate the cocking mechanism.  Disassembly/reassembly can be a bit of a hassle, so I wouldn't do it unless I had to.  It IS easy enough to take the buttplate off the back and remove the buttstock to access the whole box lock mechanism.  Clean that and lightly oil and you should be good to go.  Be careful to keep that drawbolt tight so the butt stock doesn't wobble on you.

If the barrels get loose on the receiver, tightening them is a pretty major job for the amateur, but straightforward for the well trained and equipped gunsmith.  Other than that, there isn't too much to do other than standard cleaning and lubricating.  One caution...Do NOT dryfire without snap caps.  The firing pins are harder to replace than they ought to be!

HTH, Froggie

PS  I'm not sure Ithaca is still actively in business, hence the lack of a website.  Dixie Gun Works catalogs used to have a serial number list for the old Ithacas in their appendix section each year..you might look there for that bit of info.
« Last Edit: Dec 27th, 2006 at 10:37am by Green_Frog »
Back to top

IP Logged

Schutzenbob
Frequent Elocutionist
*****
Offline


Rheinisch-Westfälisc
hen Sprengstoff-Fabriken

Posts: 2144
Location: Nightingale, California
Joined: Oct 24th, 2005
Re: Ithaca S/S S12
Reply #3 - Dec 27th, 2006 at 12:53pm
Print Post
You can buy a reprint of an Ithaca catalog from these folks, as I remember Ithaca's old catalogs had lots of information in them;

(You need to Login or Register to view media files and links)

Bob


Back to top

IP Logged

Brozbows
Junior Member
**
Offline



Posts: 84
Location: Manitoba
Joined: Jun 6th, 2006
Re: Ithaca S/S S12
Reply #4 - Dec 27th, 2006 at 3:03pm
Print Post
Going by the serial number you have yourself an Ithaca Knick model made in 1922. Very nice guns... absolute workhorses being very reliable.

I have two Ithaca doubles from 1911 and 1921. Both of mine are Flues models but are very simular to the Knick as far as I can tell.

Here's my older one... enjoy yours, they are sweet to shoot.

Regards,

Darryl

Back to top

IP Logged

clicking
Ex Member


Re: Ithaca S/S S12
Reply #5 - Dec 29th, 2006 at 8:30pm
Print Post
Very helpfull information so far guys. Thanks.
I should have waited a day or two to read your comments Green-Frog. I'm finding out how difficult it is to reassemble. Just had to open it up didn't I!
Looks pretty straight forward though. I'd still like to find at least an exploded parts diagram. I've tried the sources listed so far, but no luck. If anyone hears of a good source, please let me know.
Thanks again for the replies.
Happy New Year.

Back to top

IP Logged

digitall423
Oldtimer
*****
Offline



Posts: 747
Location: Mexico Beach, FL
Joined: Aug 5th, 2005
Re: Ithaca S/S S12
Reply #6 - Dec 31st, 2006 at 9:45am
Print Post
"Building Double Rifles On Shotgun Actions" by W. Ellis Brown and published by Bunduki Publishing; 39384 W.C.R. 19; Ft. Collins, CO 80524 has a good description of how to dismantle and reassemble box lock action as well as how to make the tool to ease the job. I bought mine online. Google around and you will find it.

Bill

Back to top

IP Logged

38_Cal
Frequent Elocutionist
*****
Offline



Posts: 2248
Location: Montezuma, Iowa
Joined: Apr 27th, 2005
Re: Ithaca S/S S12
Reply #7 - Dec 31st, 2006 at 11:03am
Print Post
Brownells has the book, stock #100-001-603.  Good book, lots of information.

(You need to Login or Register to view media files and links)

David
Montezuma, IA


David Kaiser
Montezuma, IA
Back to top

IP Logged

clicking
Ex Member


Re: Ithaca S/S S12
Reply #8 - Jan 1st, 2007 at 7:58pm
Print Post
I've got the book on order for future reference. Brownells has the best price from the couple of sources I'd found. Took it to the trap range yesterday for my first chance to shoot it. Turned out to be a great fit and a fun shooter. Looking forward to the last weeks of quail season here in Texas. Thanks again for the help guys.
PS - Great Forum! Hats off to all the people working this site. Looking forward to future visits.

Back to top

IP Logged

clicking
Ex Member


Re: Ithaca S/S S12
Reply #9 - Jan 12th, 2007 at 12:08am
Print Post
This is information that you regulars already know, but for any other newbies wandering into this forum....

Some closing comments:

1. Turns out that the last known Ithaca gunsmith who worked for the factory beginning in 1964 retired in the late 70's. He now sells gun parts in Canada. Great guy. Got his name and phone number from Ithaca headquarters.

2. There is no such thing as an exploded parts diagram from a factory for guns produced prior to 1945 by just about any manufacturer.

3. Even the "factory" parts were very hand fitted and customized from gun to gun and from gunsmith to gunsmith making for slight differences and evolving assemblies, even within the same factory model.
Bottom line - photograph and sketch every step of a disassembly as you
go. It will be your only guide to putting things back in their right place!
